661-60mm Light-Duty Bar Clamp
  • 60kg clamping force – Widened rail minimises bending under load
  • Induction‑hardened rail – delivers improved strength and long‑term durability

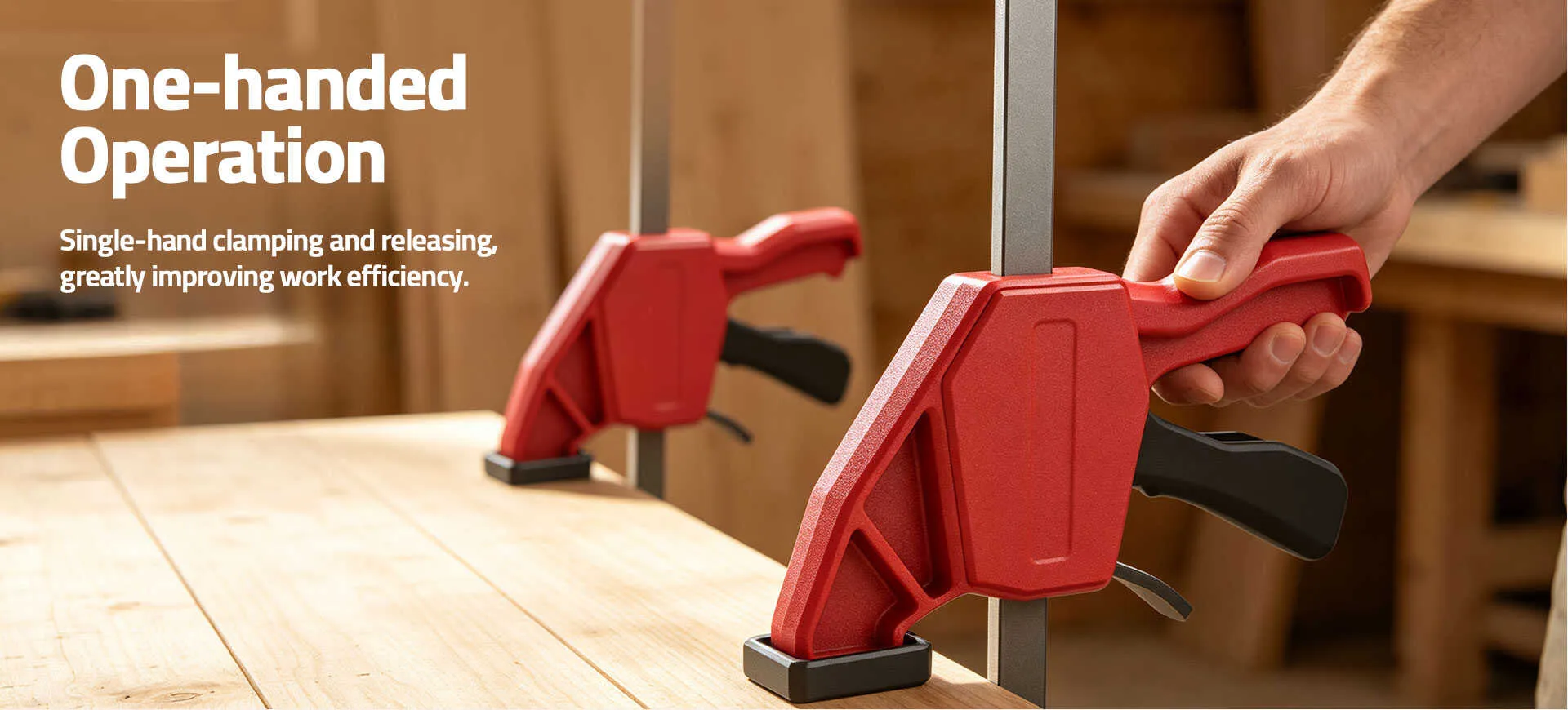

  • Long‑leverage handle for easy pressure application; optimised quick‑release trigger for effortless disengagement

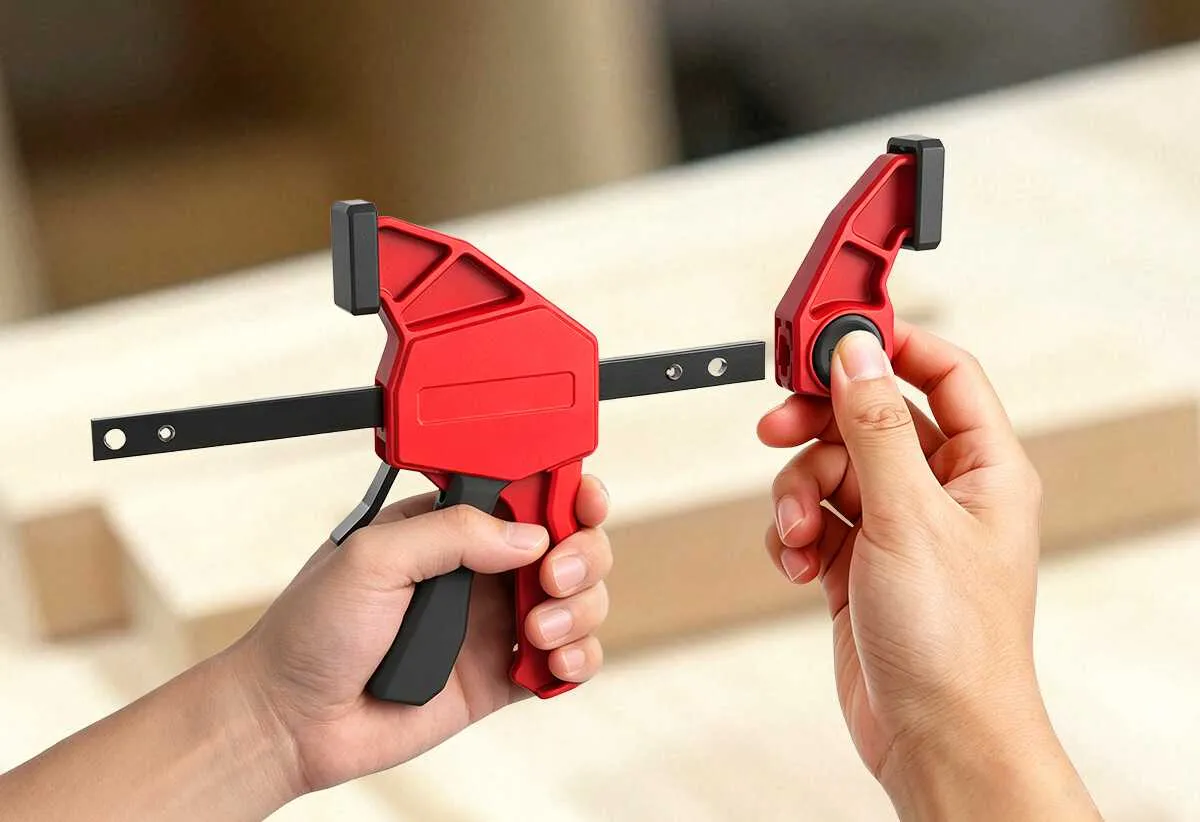

  • Quick‑convert design – easily switches from clamp to spreader
  • Soft protective cushions – safeguard workpieces from damage
  • Engineering‑grade plastic body – lightweight yet strong for reliable use
  • Elegant appearance with premium surface finish – combines functionality with refined aesthetics
Product Overview

661-60mm Light-Duty Bar Clamp delivers a stable clamping force of up to 60kg with a 60mm throat depth, making it an ideal choice for light woodworking, DIY projects, and hobbyist applications. The induction‑hardened rail provides improved strength and wear resistance, while the I‑beam structural design with a widened rail effectively reduces bending under load.

A long‑leverage handle allows easy application of pressure, and the clamp can be quickly converted to a spreader for added versatility. Soft protective cushions safeguard workpieces from damage, and the strong engineering‑grade plastic body ensures lightweight durability. With a clamping capacity ranging from 150mm to 600mm, this clamp offers flexibility for smaller to medium project sizes.

An optimised quick‑release trigger ensures fast, effortless disengagement, enhancing workflow efficiency. Engineered for dependable performance and ease of use, the 661-60mm is a practical and reliable companion for everyday light‑duty tasks.


Specifications
Art. No. Throat Depth (mm) Clamp Force (kg) Clamp Range (mm) Spread Range (mm) L x W x H (mm) Wt. (kg) Pcs. / Ctn. Ctn. Dim. (cm)
DT66160150 60 60 150 315 323 x 170 x 26 0.33 12 33 x 18 x 22
DT66160300 60 60 300 468 476 x 170 x 26 0.41 12 48 x 18 x 22
DT66160450 60 60 450 620 628 x 170 x 26 0.49 12 63 x 18 x 22
DT66160600 60 60 600 773 781 x 170 x 26 0.56 12 78 x 18 x 22
Strong Engineering - Grade Plastic

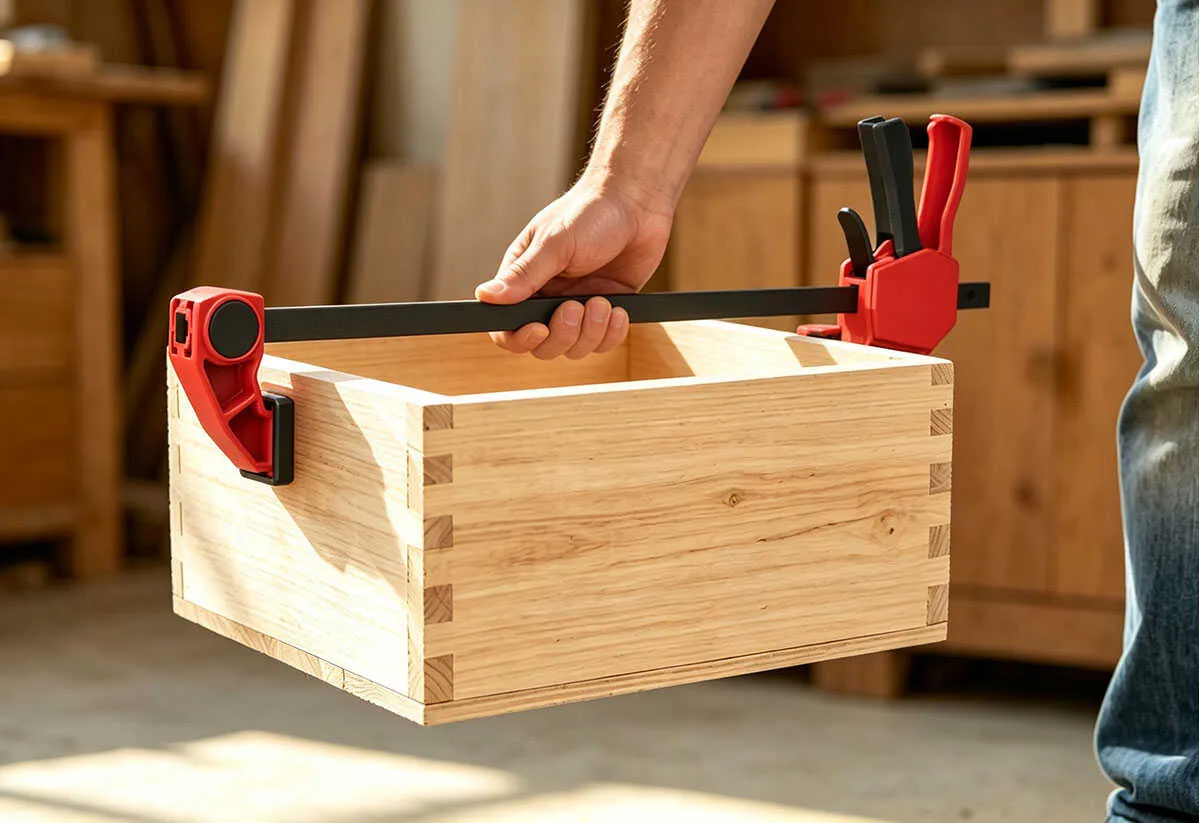

Flexible & Multifunctional Solution

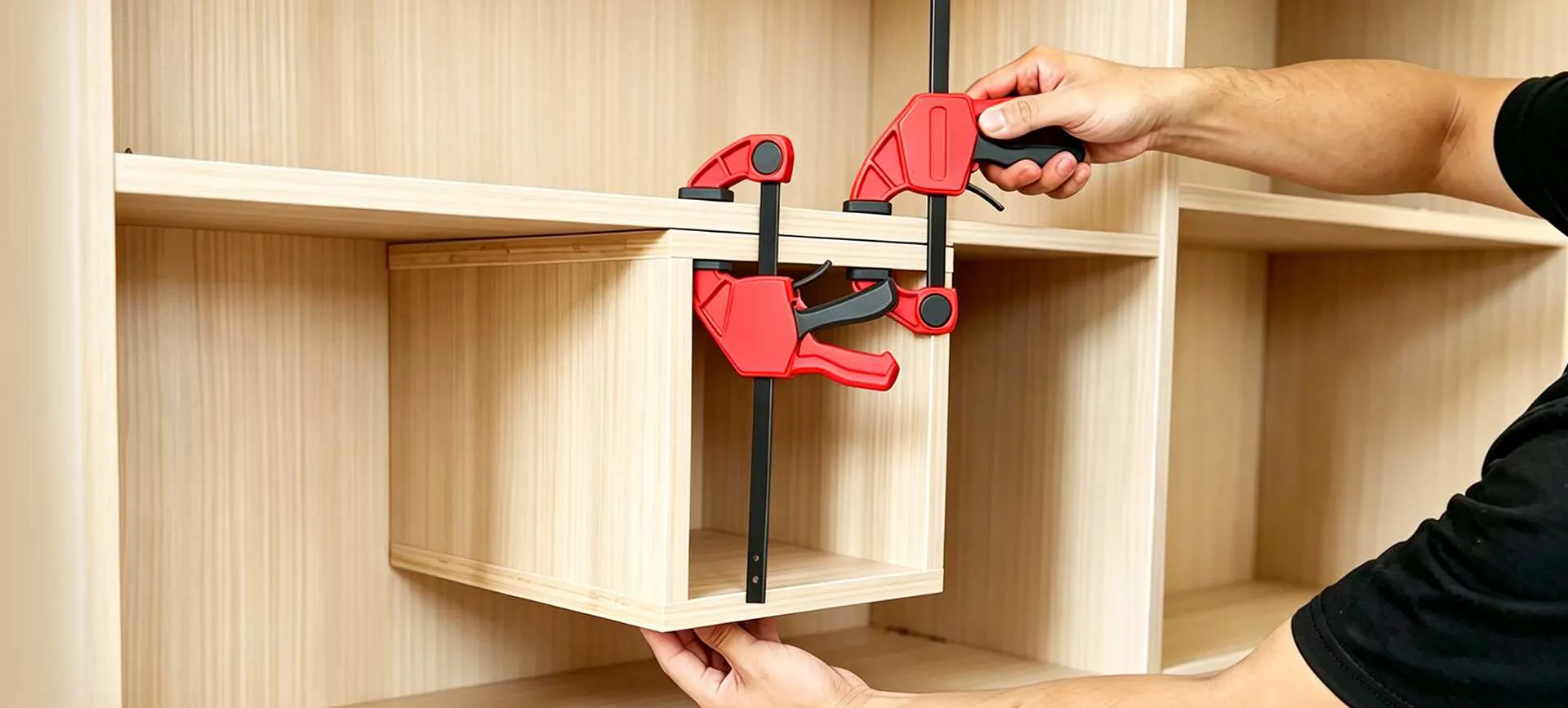

Clamp the Workpiece to Free Up Your Hands for Operating Tools
Photo Frame and Decorative Paintion Assemaly Positioning

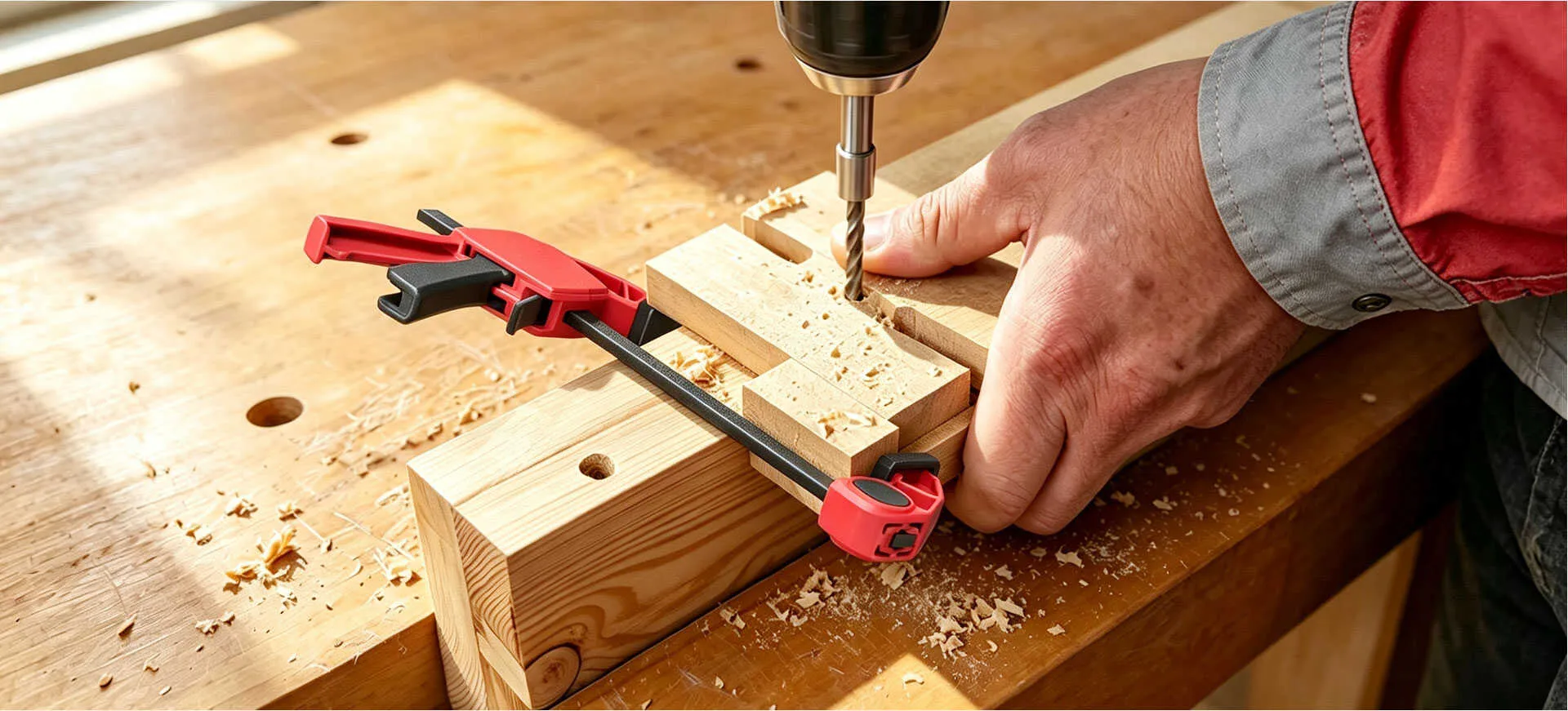

When Drilling and Sanding the Boards
