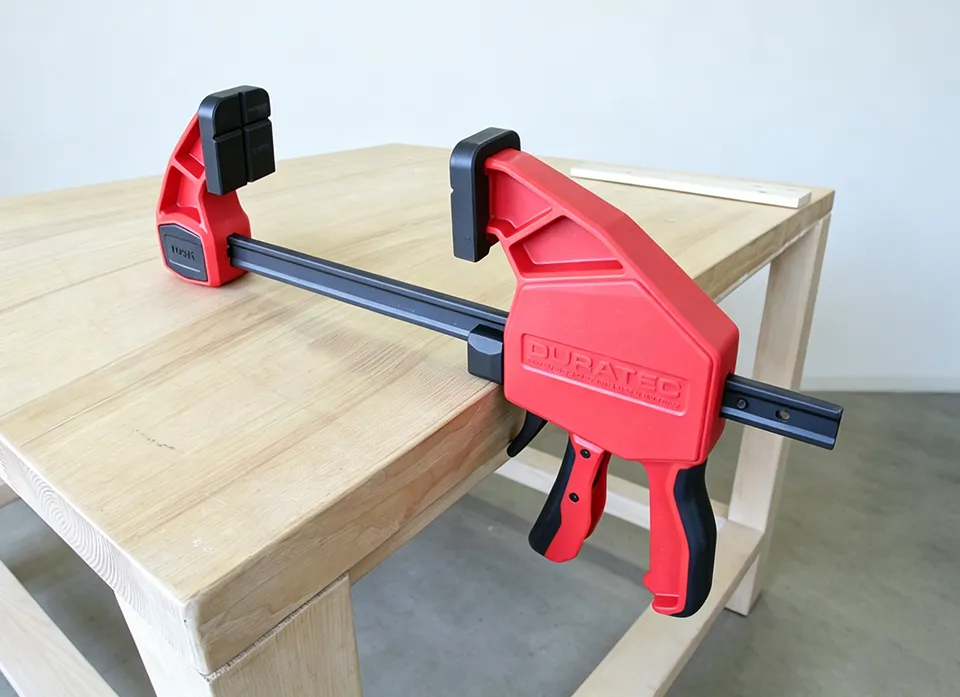

661-90mm Ultra Heavy Duty Bar Clamp

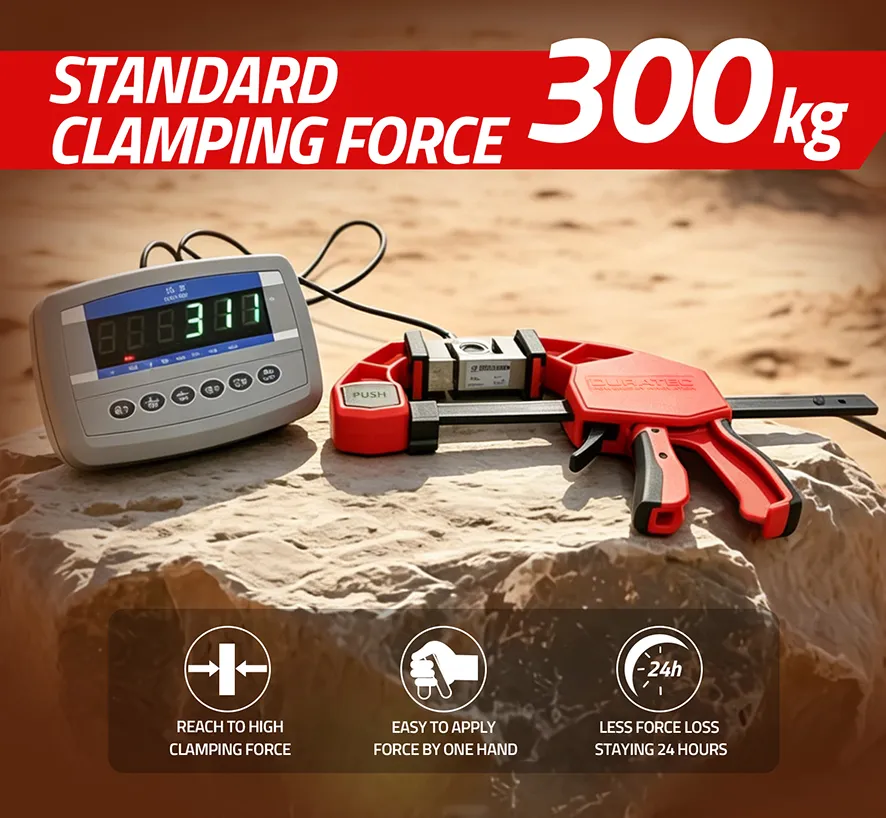

  • 300kg clamping force – I‑beam + widened rail minimises bending under load

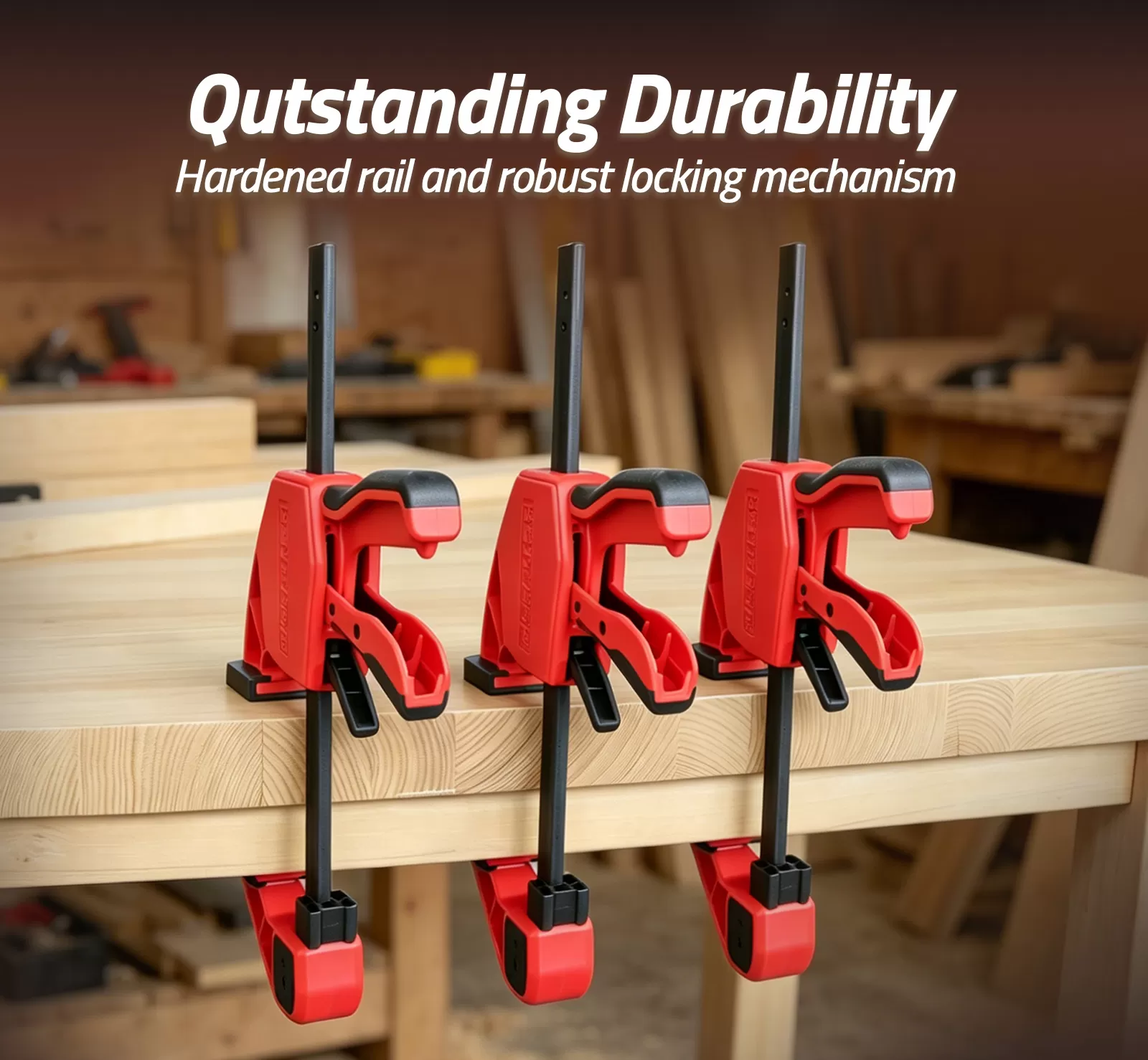

  • Induction‑hardened rail – delivers improved strength and long‑term durability
  • Long‑leverage handle for easy high‑pressure application; optimised quick‑release trigger for effortless disengagement

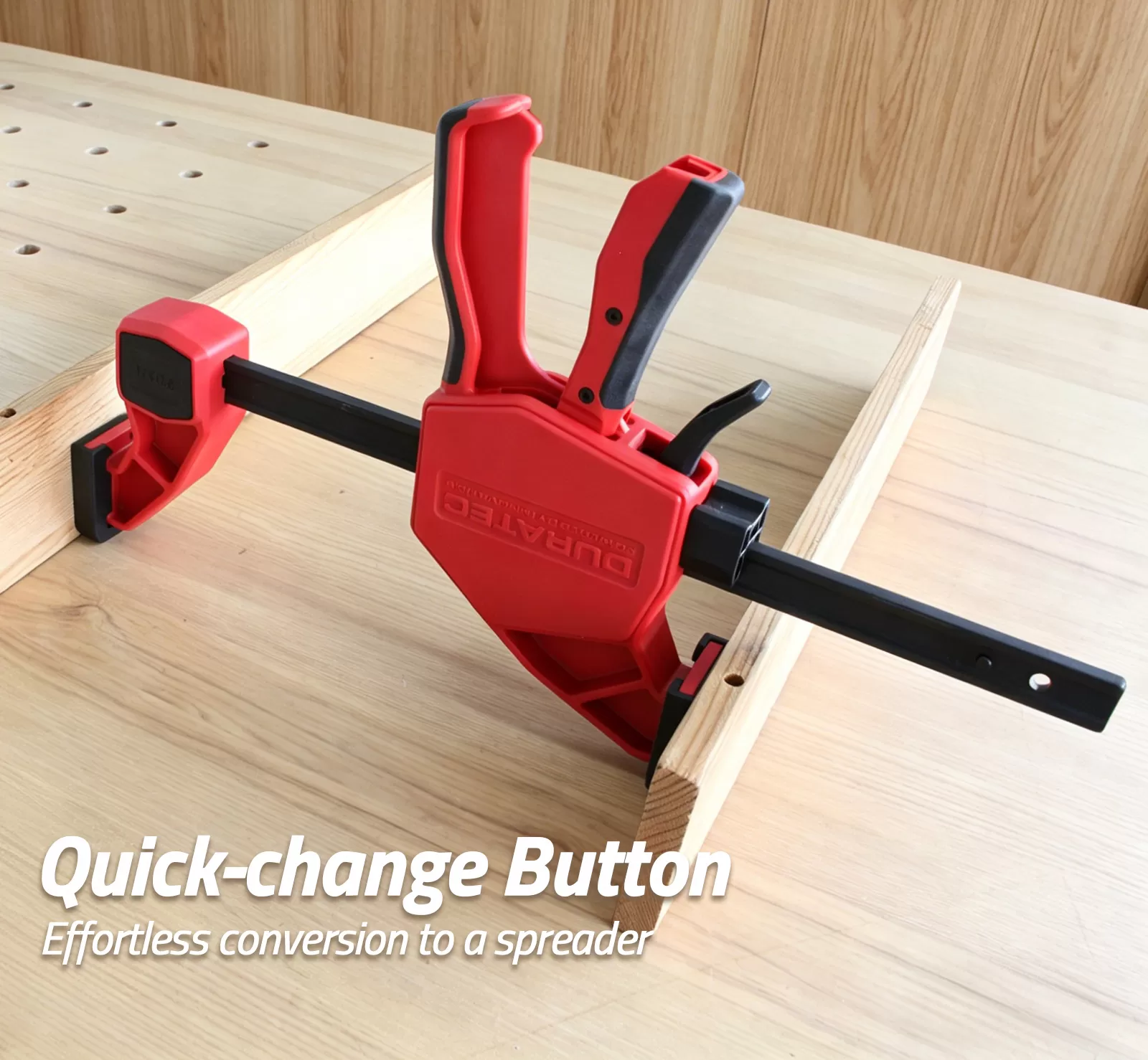

  • Quick‑convert design – easily switches from clamp to spreader
  • Soft protective cushions – safeguard workpieces from damage (extended version optional)
  • Engineering‑grade plastic body – lightweight yet strong for heavy‑duty use
  • Elegant appearance with premium surface finish – combines functionality with refined aesthetics
Product Overview

661-90mm Ultra Heavy Duty Bar Clamp delivers a stable clamping force of up to 300kg, making it ideal for heavy‑duty woodworking and industrial applications. The induction‑hardened rail provides superior strength and wear resistance, while the I‑beam structural design with a widened rail minimises bending under high loads.

A long‑leverage handle allows easy application of high pressure, and the clamp can be quickly converted to a spreader for versatile use. Soft protective cushions safeguard workpieces from damage, with an optional extended‑cushion version available for larger or delicate surfaces.

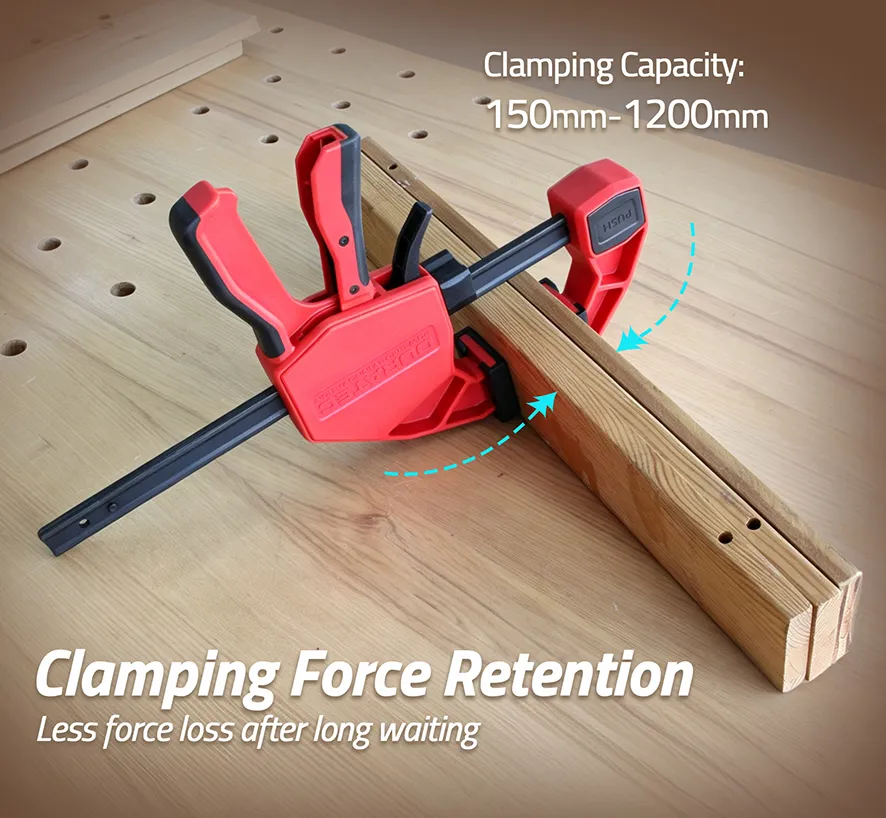

Constructed from strong engineering‑grade plastic for lightweight durability, the clamp offers a clamping capacity from 150mm to 1200mm. An optimised quick‑release trigger ensures fast, effortless disengagement, enhancing workflow efficiency.

Specifications
Art. No. Throat Depth (mm) Clamp Force (kg) Clamp Range (mm) Spread Range (mm) L x W x H (mm) Wt. (kg) Pcs. / Ctn. Ctn. Dim. (cm)
DT66190150 90 300 150 380 405 x 236 x 50 1.1 6 41 x 16 x 31
DT66190300 90 300 300 533 550 x 236 x 50 1.26 6 55 x 16 x 31
DT66190450 90 300 450 685 705 x 236 x 50 1.38 6 70 x 16 x 31
DT66190600 90 300 600 838 855 x 236 x 50 1.52 6 85 x 16 x 31
DT66190900 90 300 900 1142 1160 x 236 x 50 1.67 6 100 x 16 x 31
DT66190120 90 300 1200 1447 1465 x 236 x 50 1.81 6 115 x 16 x 31

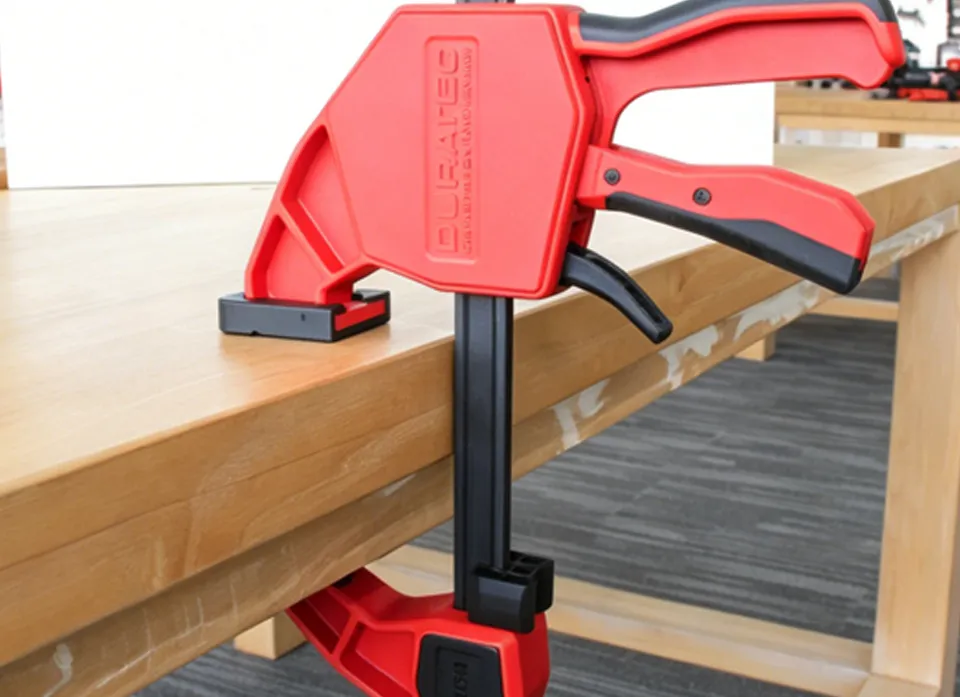

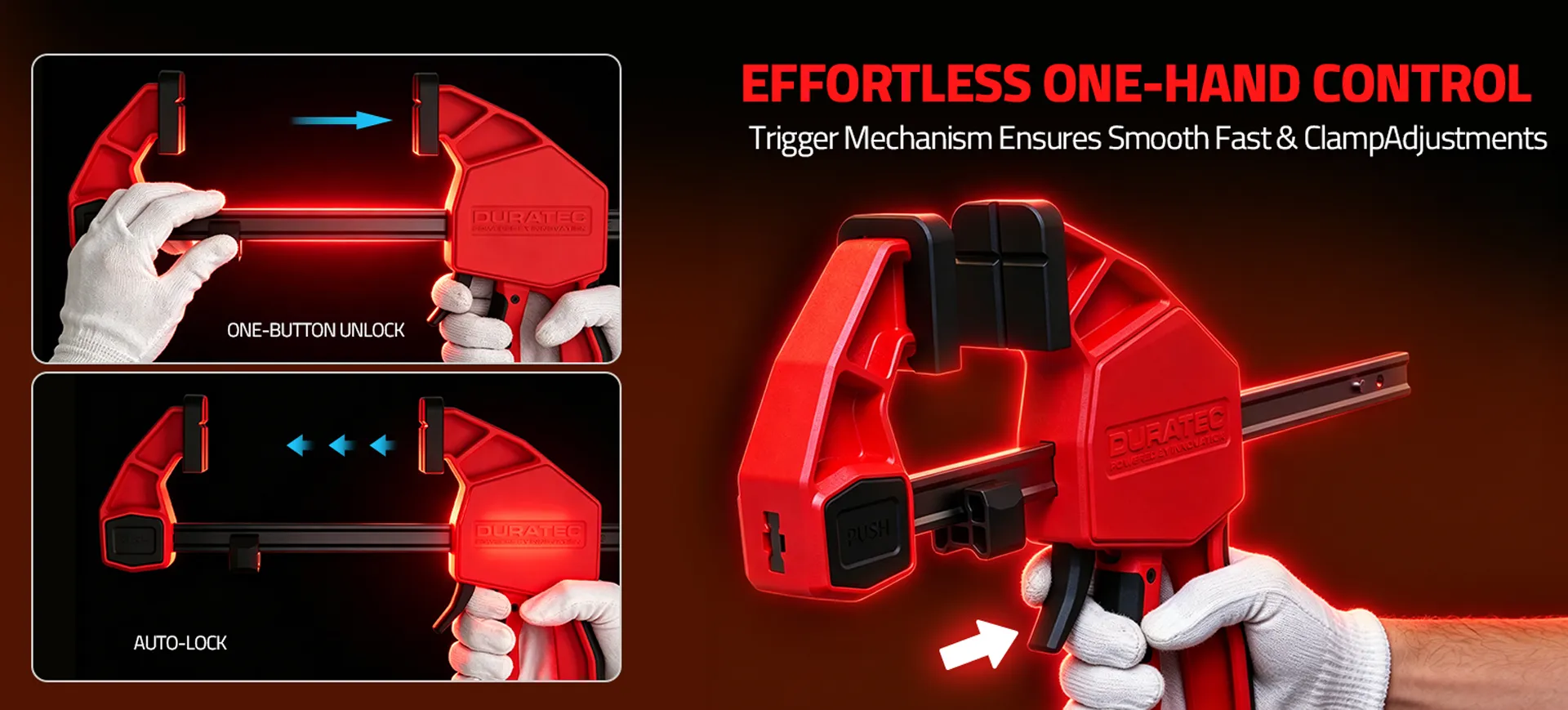

Effortless One-Hand Clamping

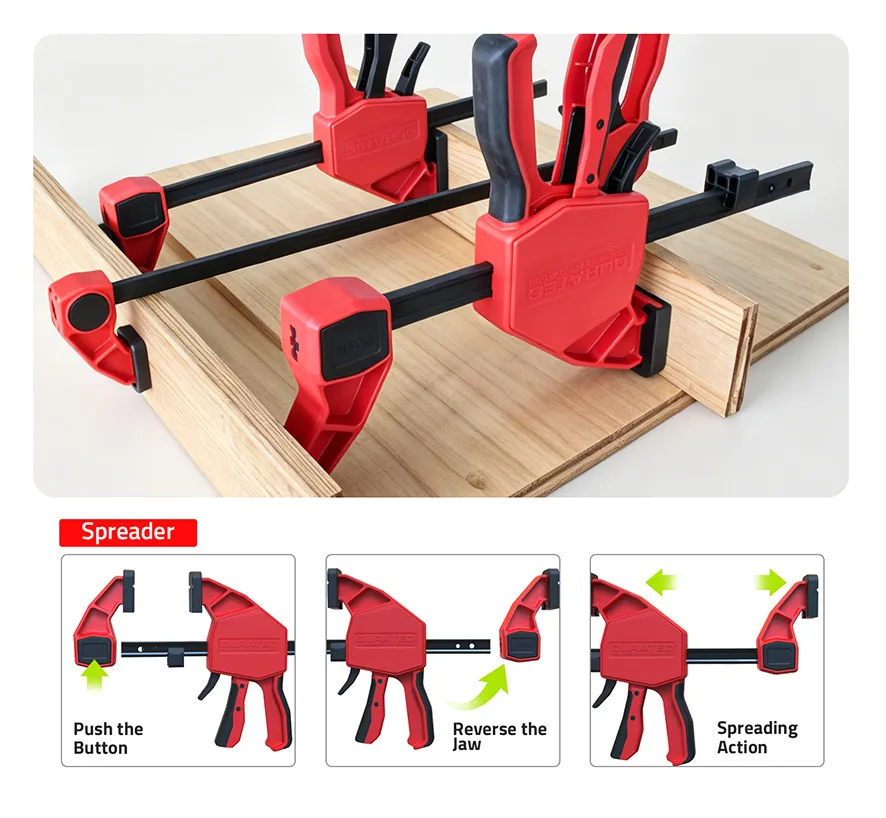

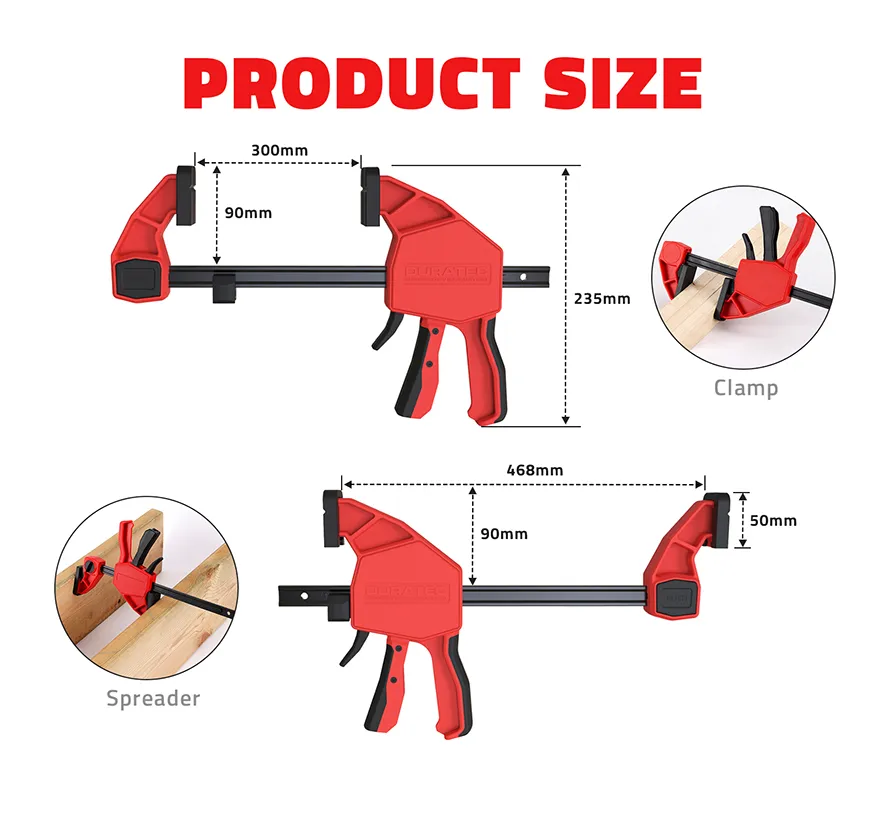

Can Be Used As Clamp or Spreader

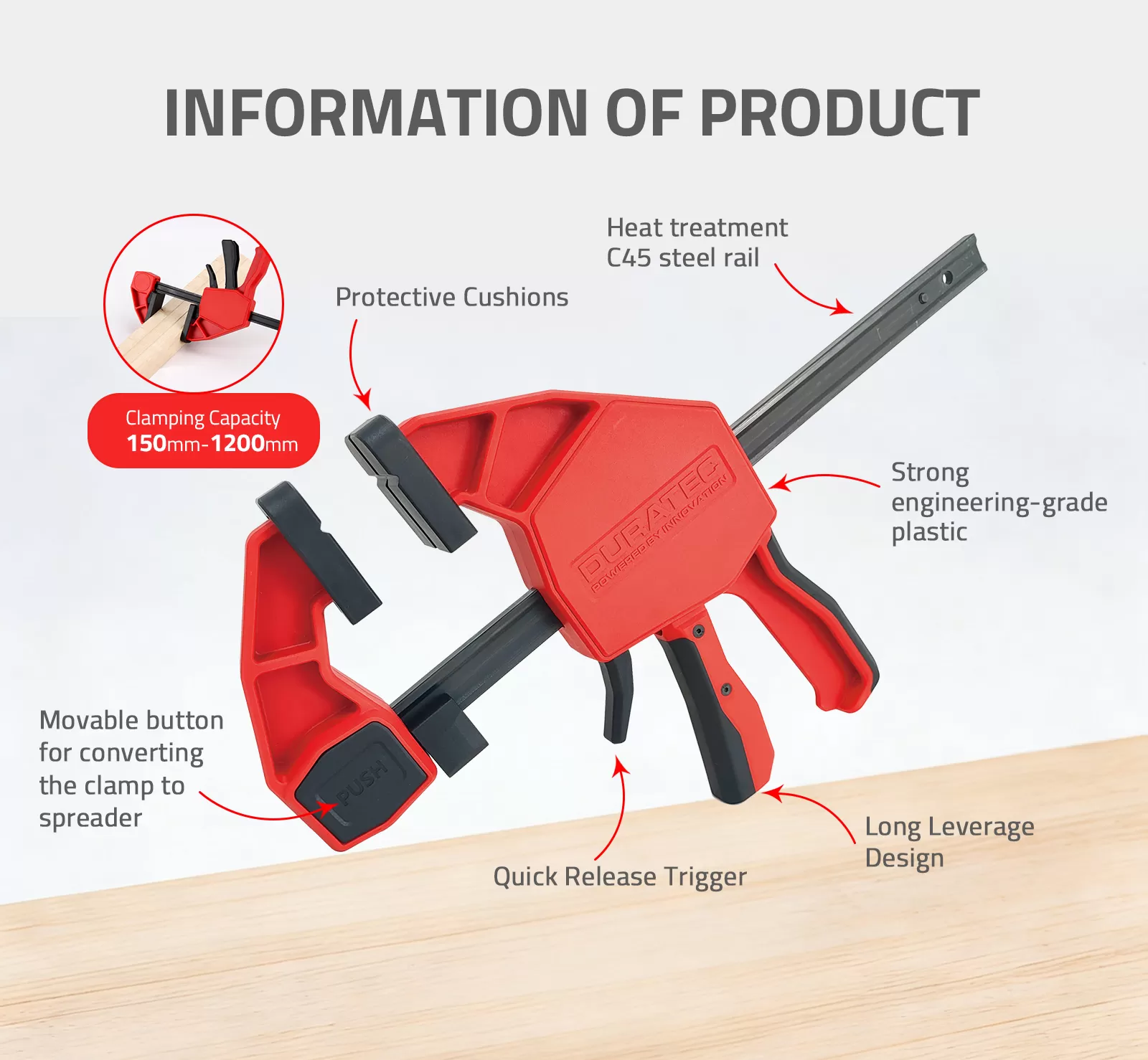

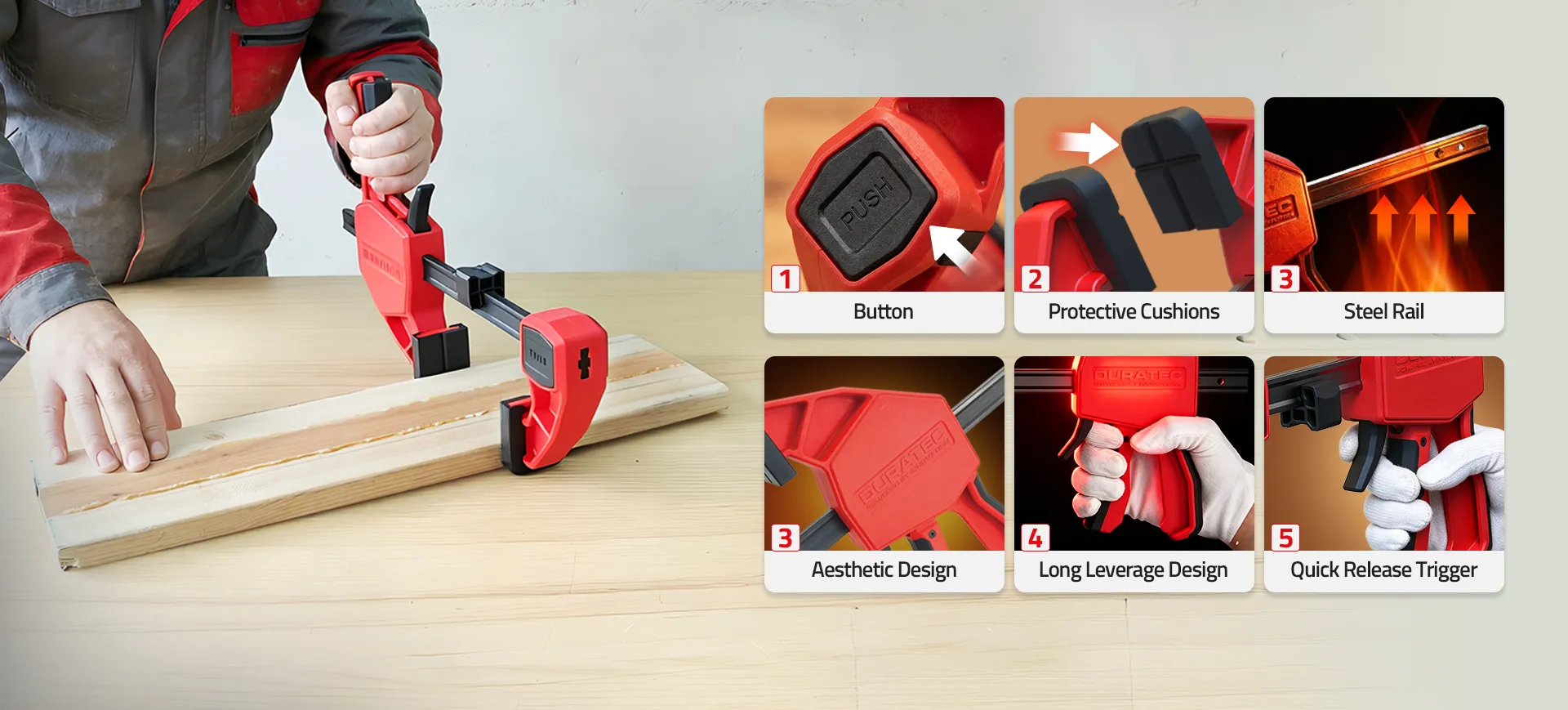

Key Features & Details

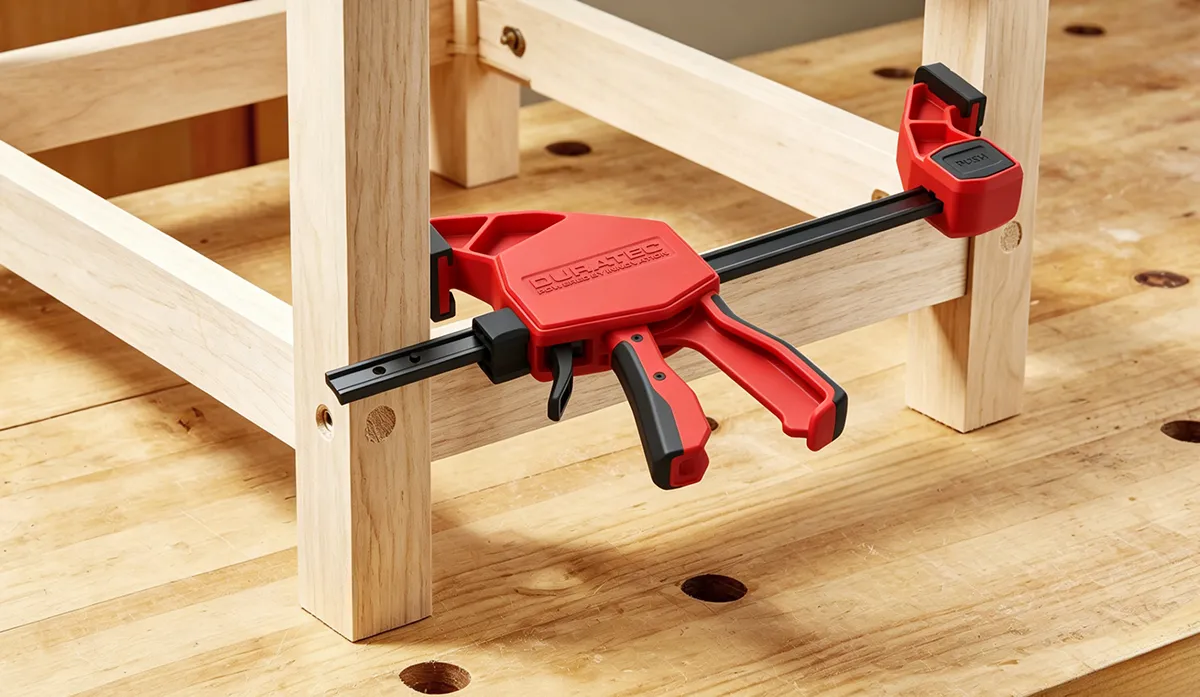

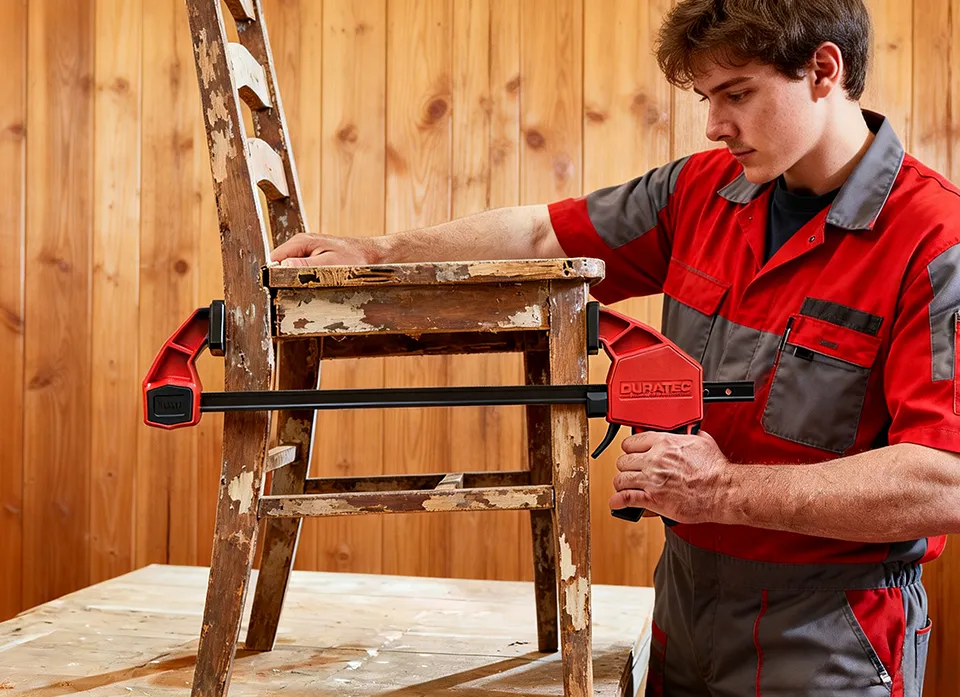

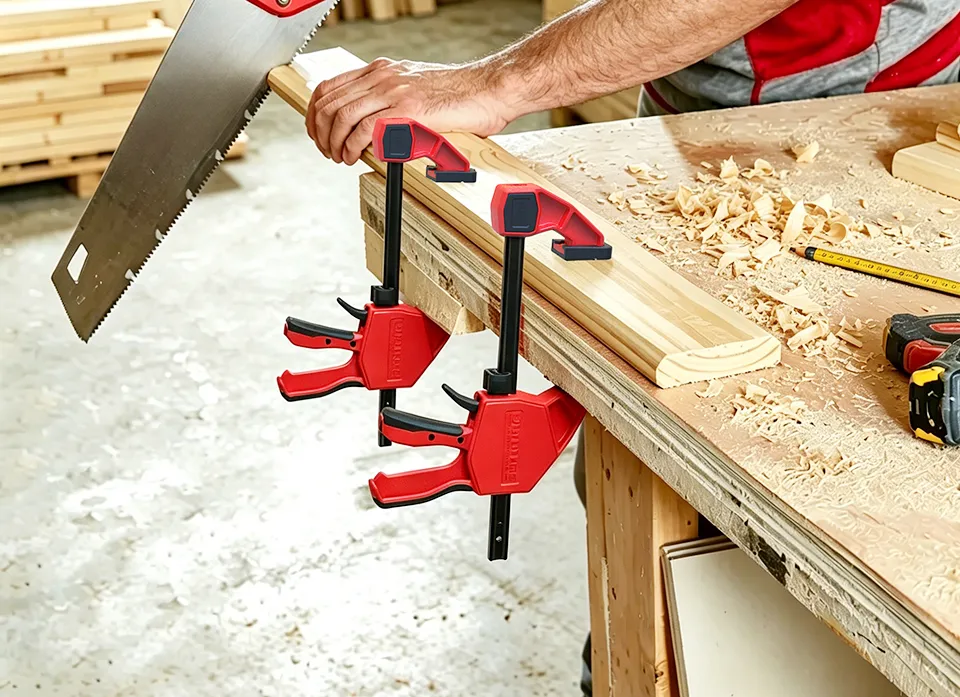

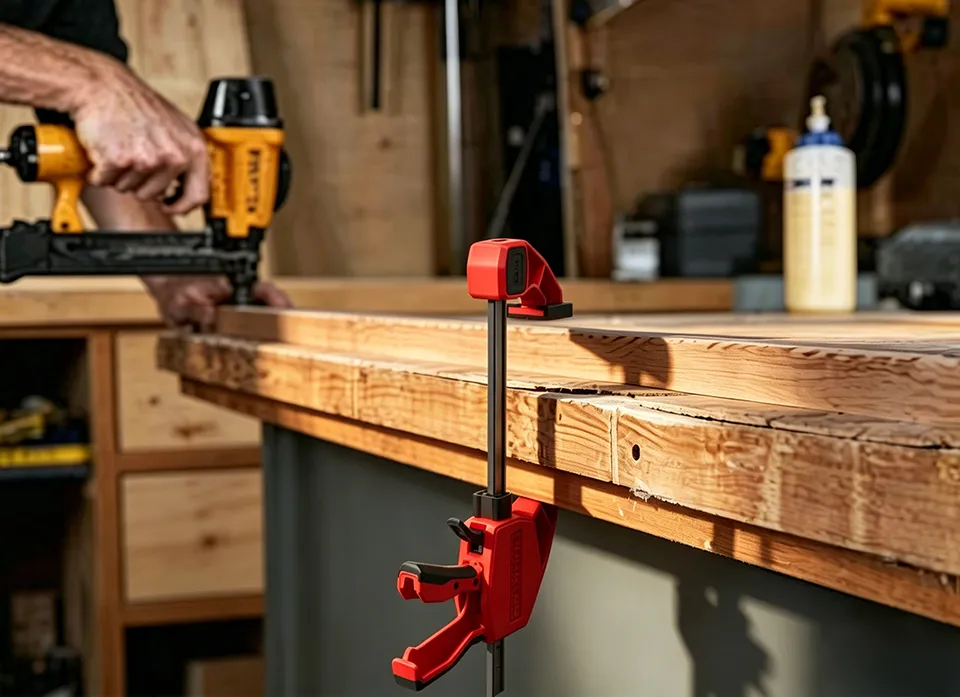

Wide Range of Applications
